Scaffold Stability Guide

Base-to-Height Ratios, Anchoring, Abutment & When Engineering Is Required

Purpose of This Guide

This guide supports safe scaffold use across Arclight Tool + Supply Co. sales and rental operations.
It is written for contractors, crews, safety officers, and inspectors working in real jobsite conditions.

Always follow:

  • Manufacturer instructions (including system-specific limitations)

  • Applicable provincial, state, and federal regulations

  • The most restrictive safety requirement applicable to your site

When in doubt, increase stability, not risk.

Why Scaffold Stability Matters

Scaffold failures are rarely caused by defective equipment.
They are most often caused by:

  • insufficient base width,

  • lack of anchoring or tie-ins,

  • environmental forces (wind, vibration),

  • or dynamic work forces (hammer drilling, material handling).

Stability is not static.
It changes based on configuration, height, ground conditions, task forces, and weather.

The Base-to-Height Ratio (The “3:1 Rule”)

A commonly referenced guideline for supported and mobile scaffolds is the 3:1 base-to-height ratio.

In practical terms:

  • For every 3 units of height, the scaffold should have 1 unit of base width.

  • If this ratio is exceeded, additional stabilization is required.

Example:
A scaffold erected to 12 ft in height should have a minimum effective base width of 4 ft.

Important:
Base width must be measured from the outermost stabilizing points, not interior platform dimensions.

Measuring the Base Correctly

Always measure the actual configuration in the field.

  • Do not rely solely on catalog dimensions

  • Measure upright-to-upright, or stabilizer-to-stabilizer if outriggers are installed

  • Inside platform dimensions do not count toward base width

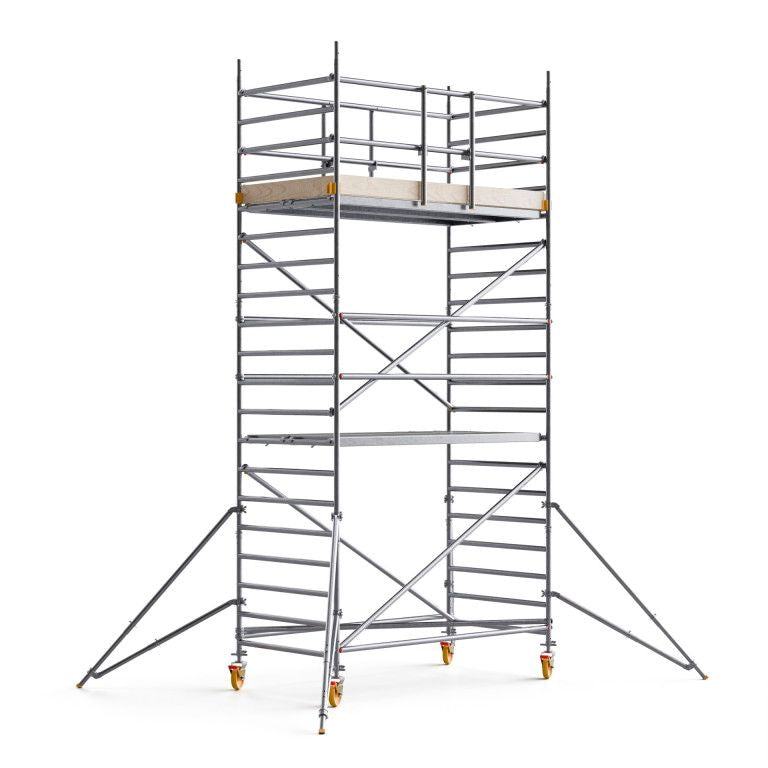

If outriggers or stabilizers are installed, they are included in the base calculation — provided they are:

  • installed per manufacturer instructions, and

  • fully deployed, locked, and bearing on suitable ground.

When Anchoring Is Required

If the scaffold exceeds the allowable base-to-height ratio without stabilizers, it must be anchored or tied to a stable structure.

Anchoring should also be considered when:

  • working outdoors,

  • operating in high-traffic or vibration-prone areas,

  • performing aggressive tasks (e.g., hammer drilling, core drilling),

  • or when wind exposure is possible.

Anchors and ties must:

  • be installed at manufacturer-recommended intervals,

  • resist both lateral and uplift forces, and

  • connect to structurally sound elements (not cladding or decorative surfaces).

Outdoor Use: Wind and Dynamic Forces

Outdoor scaffold use introduces variables that cannot be ignored:

  • gusting wind,

  • uneven or soft ground,

  • weather-related movement,

  • and dynamic worker or tool forces.

Even short-duration tasks can generate back-forces that destabilize a tower.

Best practice:
When used outdoors, always consider anchoring, even if the height appears compliant.

If anchoring is not possible, reassess:

  • height,

  • configuration,

  • or equipment selection.

Abutment as a Stability Method (Indoor Use)

Abutment involves positioning another scaffold system directly behind or beside the working tower to limit movement and sway.

This method is typically reserved for:

  • indoor applications only,

  • locations with no wind exposure,

  • and where traditional anchoring points are unavailable.

Common examples include:

  • churches and cathedrals,

  • atriums and glass domes,

  • malls, convention centres, museums, and ballrooms.

Abutment systems must:

  • be properly aligned,

  • remain in continuous contact,

  • and be installed per manufacturer guidance.

Abutment is not a substitute for anchoring in outdoor or wind-exposed conditions.

When an Engineer or Competent Person Is Required

Regulatory requirements vary by jurisdiction, but generally:

  • A competent person (through knowledge, training, and experience) may approve standard configurations up to a defined height when installed per manufacturer instructions.

  • Engineering review is recommended or required when:

    • manufacturer limits are exceeded,

    • non-standard configurations are used,

    • loads or forces are atypical,

    • or heights exceed commonly accepted thresholds (often around 12 m / 39.4 ft, depending on jurisdiction).

When conditions fall outside “standard,” do not assume — verify.

Key Takeaways

  • Always measure the actual erected configuration

  • Inside platform dimensions do not count toward base width

  • Outriggers count only when properly installed

  • Outdoor use increases risk — anchoring should be assumed

  • Abutment is primarily an indoor-only stability method

  • When conditions change, reassess stability

  • When in doubt, consult a competent person or engineer

Final Word

Scaffold stability is not about meeting the minimum rule — it’s about ensuring that everyone goes home safely.

This guide is intended to support safer decisions, not replace:

  • manufacturer instructions,

  • site-specific assessments,

  • or regulatory requirements.

Always follow or exceed the highest applicable safety standard.
