Custers Aluminum Scaffold Tower 8 ft. x 2.5 ft. x 8.2 ft.

Scaffold Frame Dimensions: Height (8 ft) x Depth (2.5 ft) x Width (8.2 ft)

Approximate working height = 14 ft.

Manufactured in Venray, the Netherlands

Designed for indoor or outdoor use.

Light weight but heavy duty design makes for easy handling, transportation and assembly.

Custers mobile ground supported or rolling scaffold has been designed, engineered and manufactured for the most demanding commercial, residential and industrial activities and the rental industry. You can count on all Custers products to give you, your workers or customers years of reliable safe access, with very little maintenance required.

Specifications

• platform dimensions: length 5.4 ft. x width 2 ft.
• up to 1,500 lbs. combined worker and material load capacity.
• trap door platforms with double sided user friendly wind securing latches.
• rip-grip rung profiles give you optimal grip for safe climbing.
• all around welded rungs and components.
• solid end rings on frames to protect against damage.
• available rubber or heavy duty synthetic swivel, locking and height adjustable casters with unique locking system that makes assembly and disassembly extremely user friendly.
• tube wall thickness: 2.3mm (frame vertical) and 2.15mm (rungs + braces)
• color coding on all horizontal and diagonal braces.

Certifications

If assembled according to the Custers Manual this tower meets and is compliant with:

• EN 1004 TÜV approved
• CAN/CSA S269.2-16
• ANSI/SSFI Standard SC100-5/05
• OSHA 29CFR PART 1926.

Package includes:

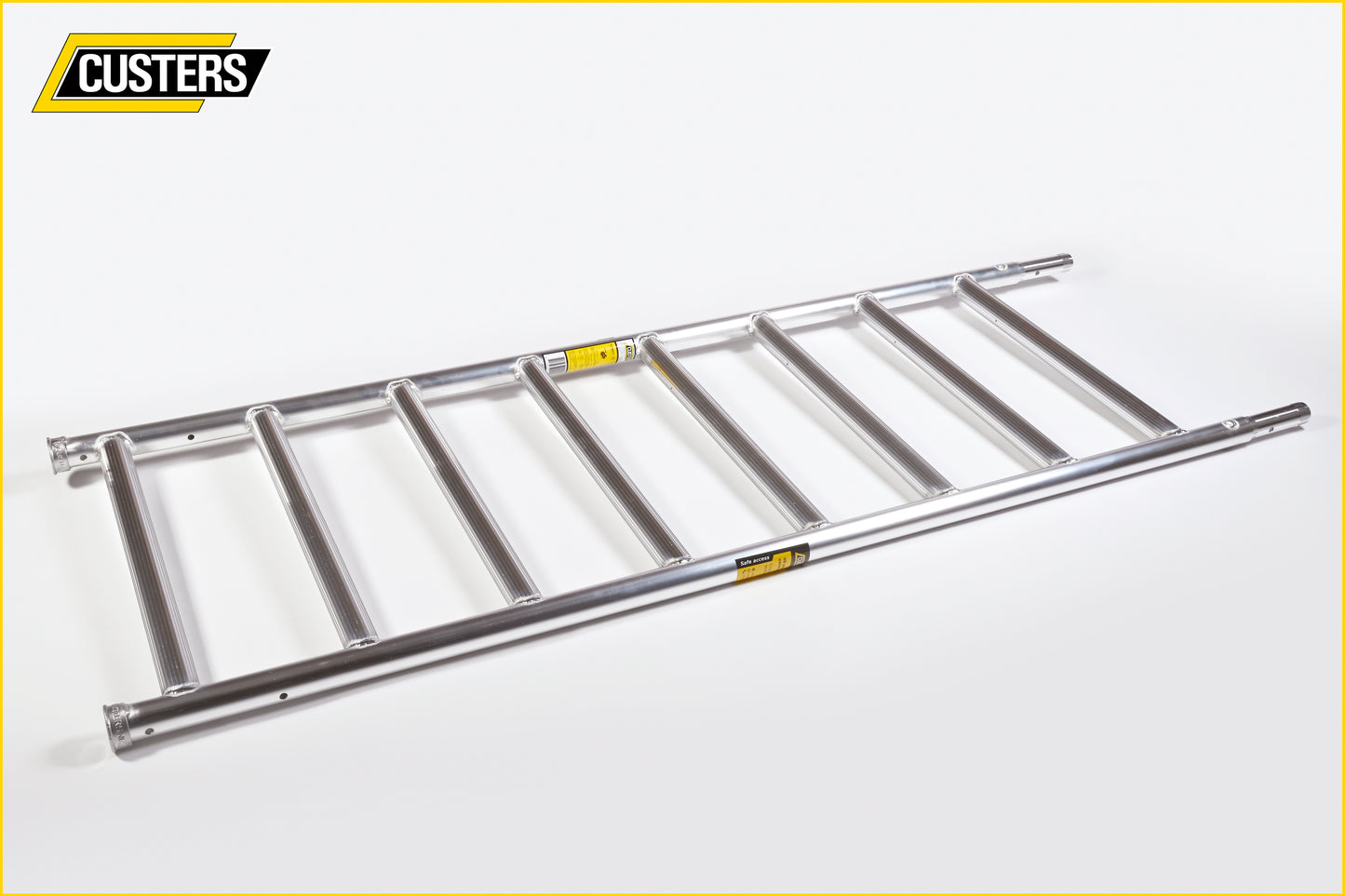

8 Rung Frames = 2

Guardrail Frames = 2

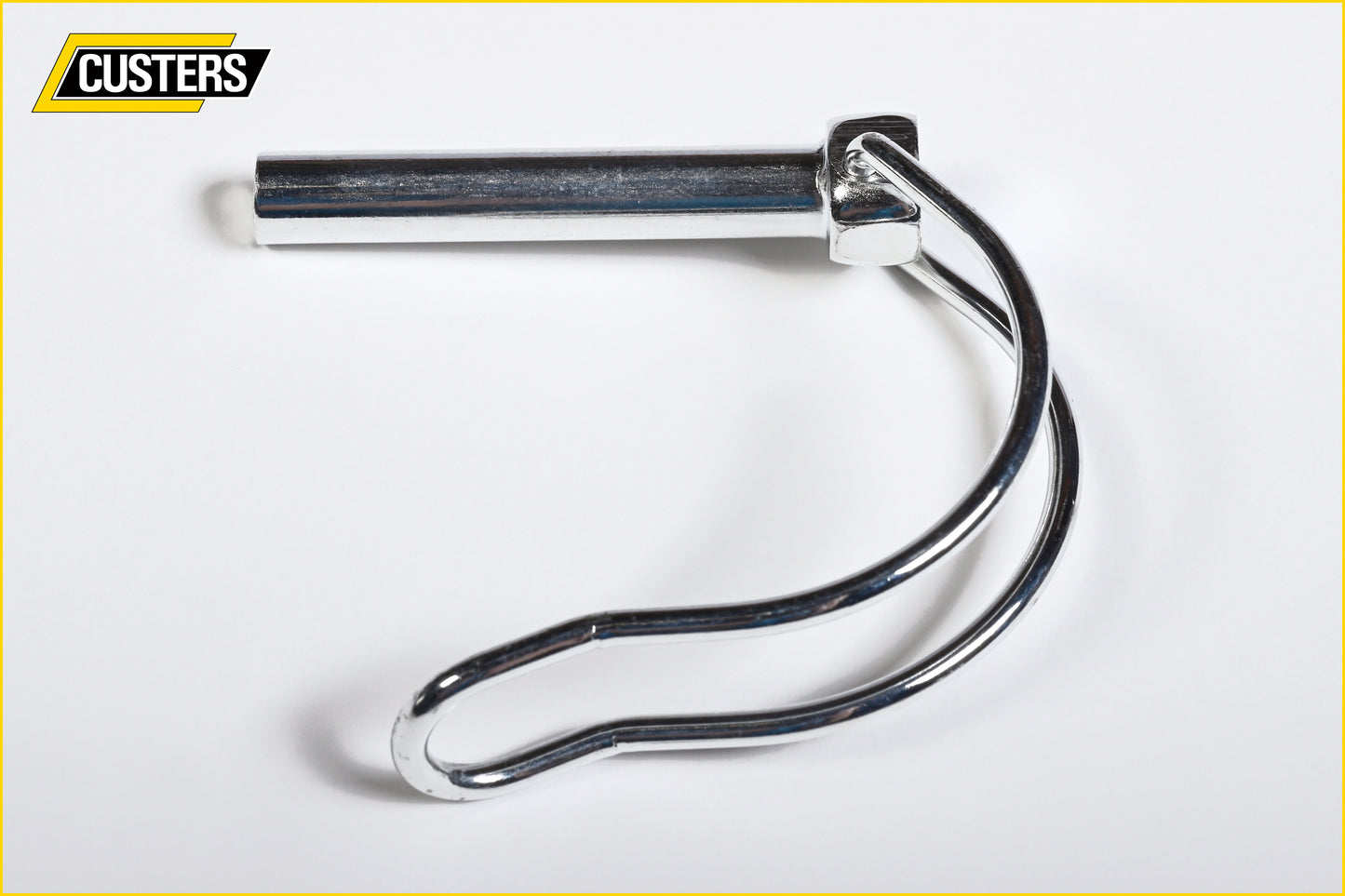

Frame Securing Clips = 4

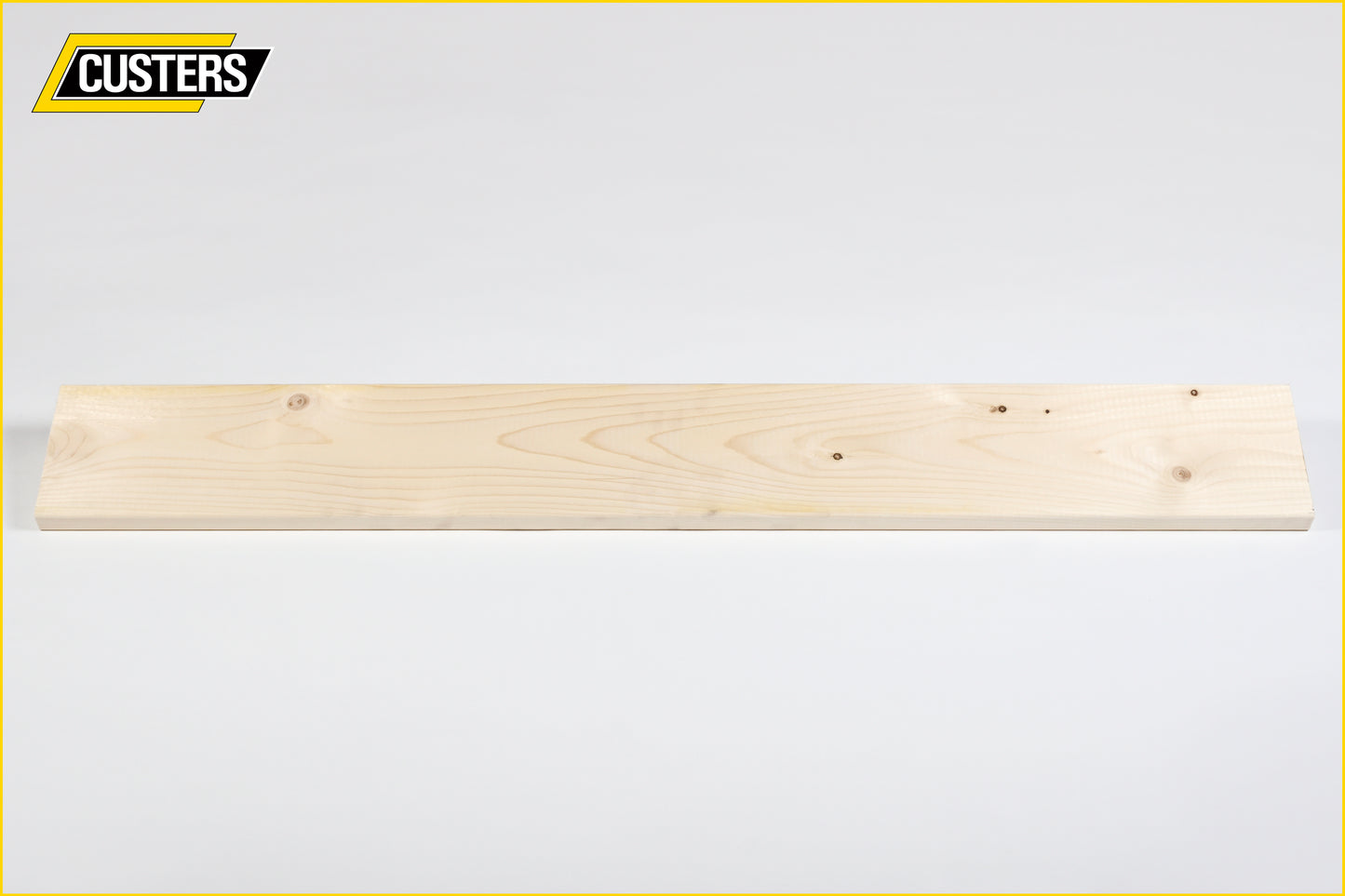

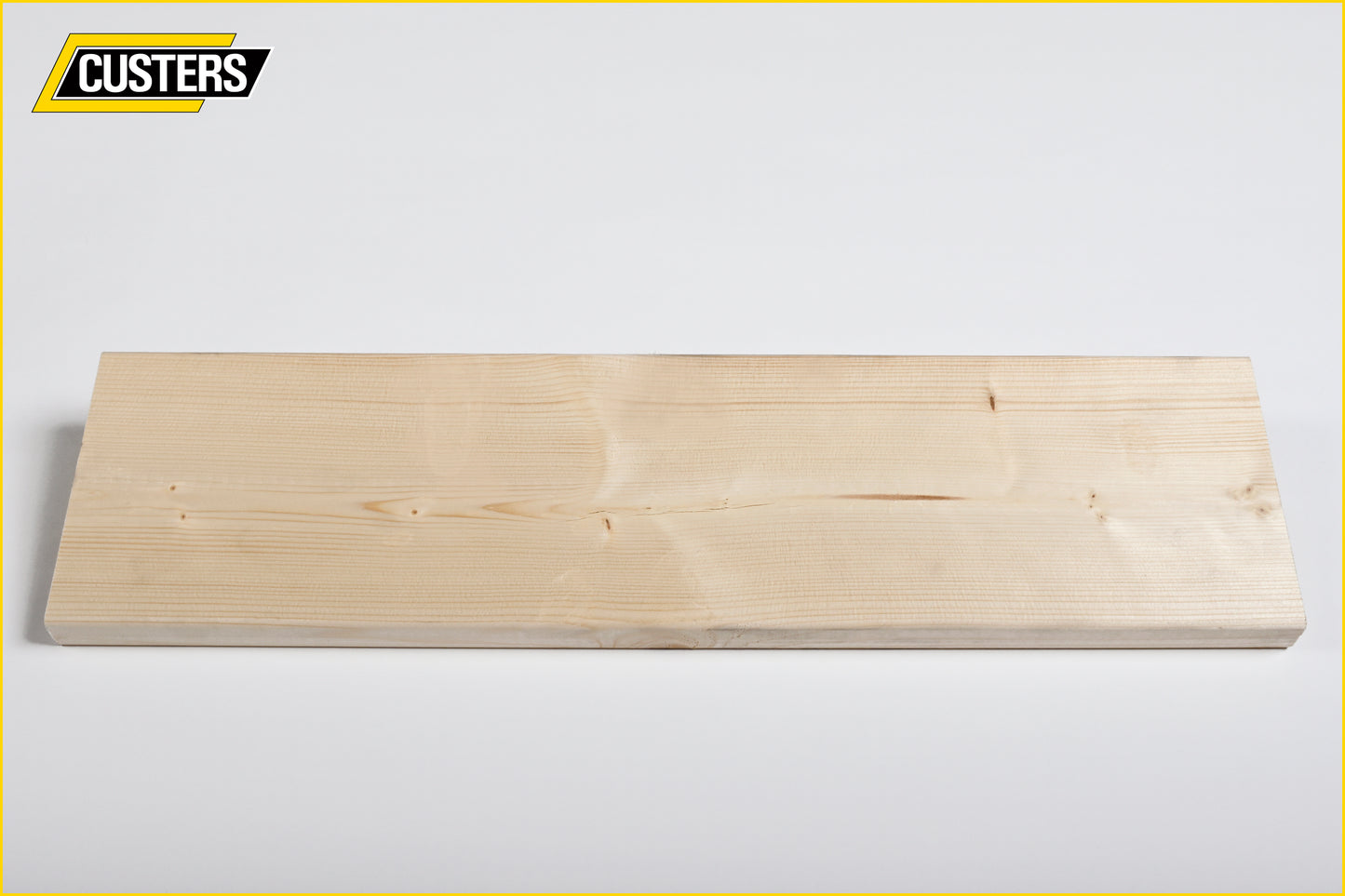

Toe Boards = 4

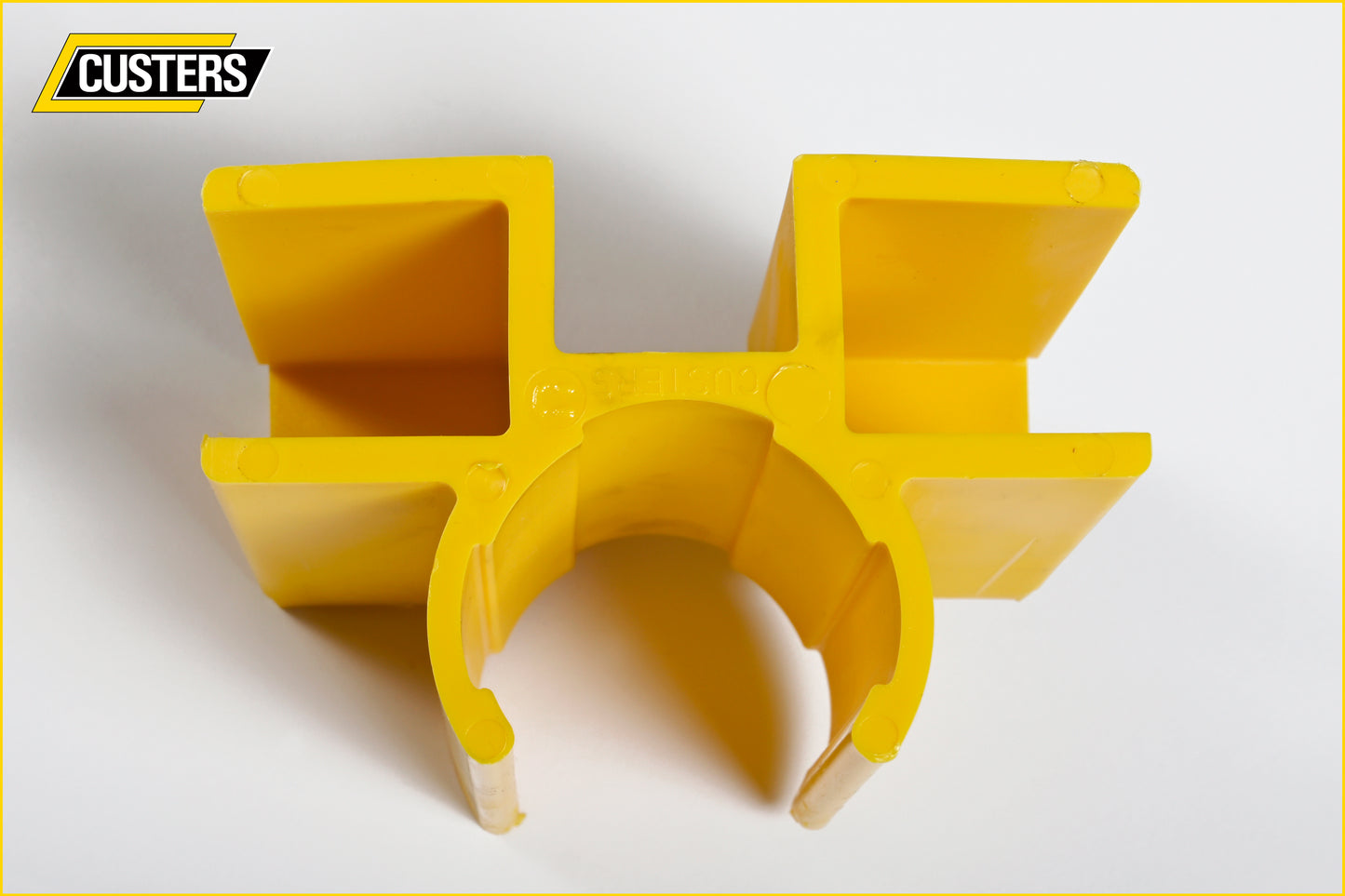

Toe Board Holders = 4

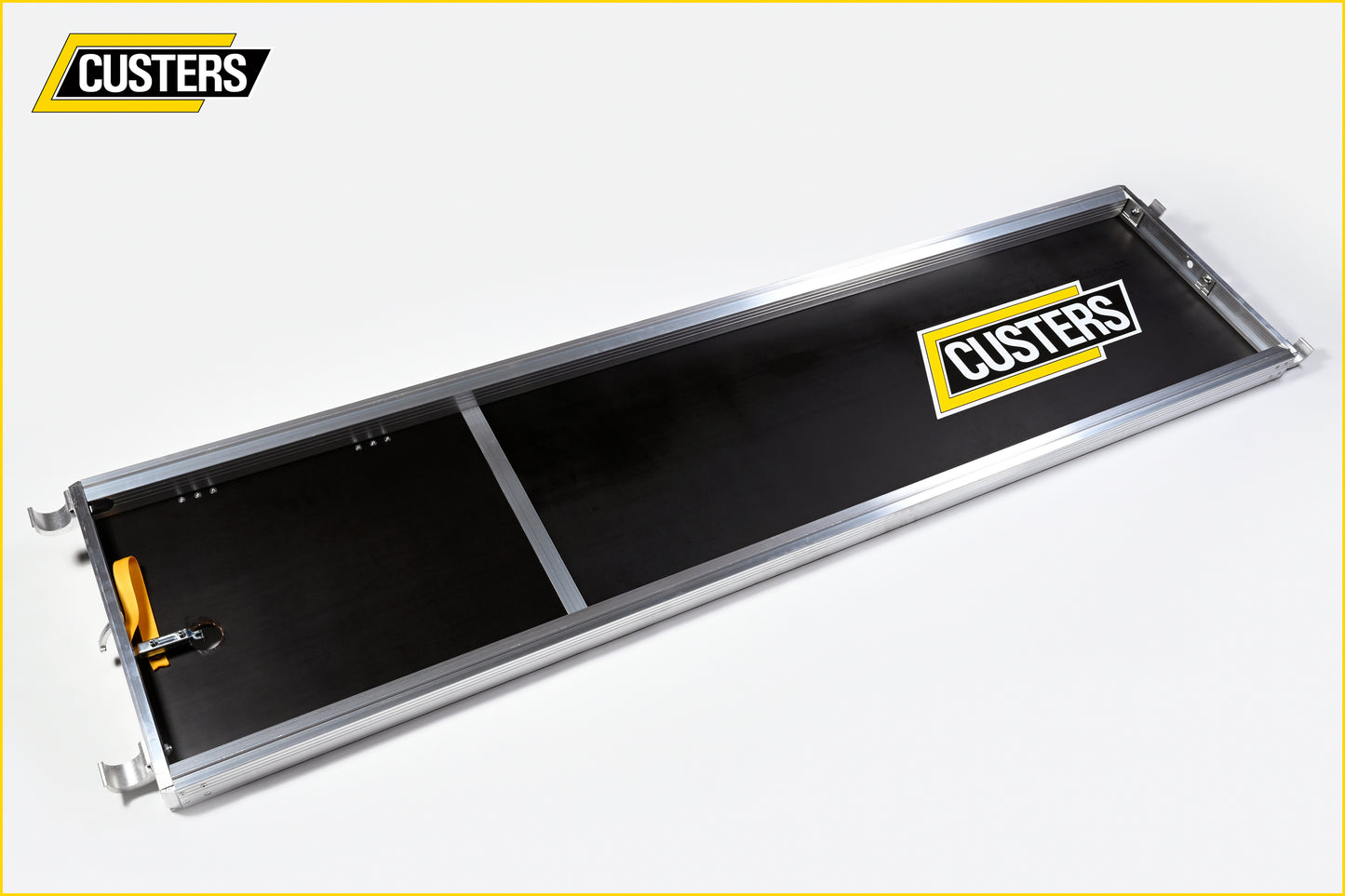

Trapdoor Platform = 1

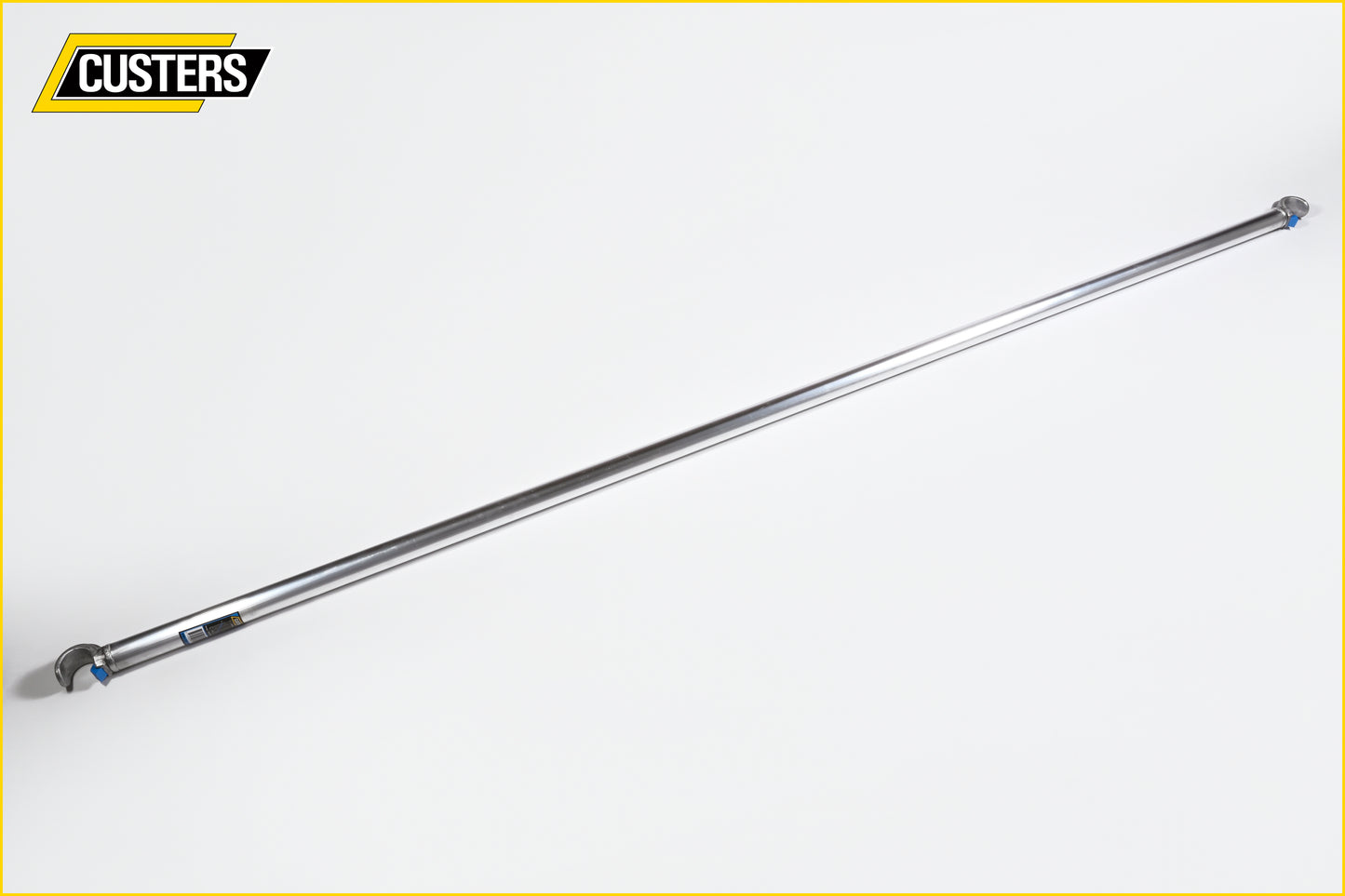

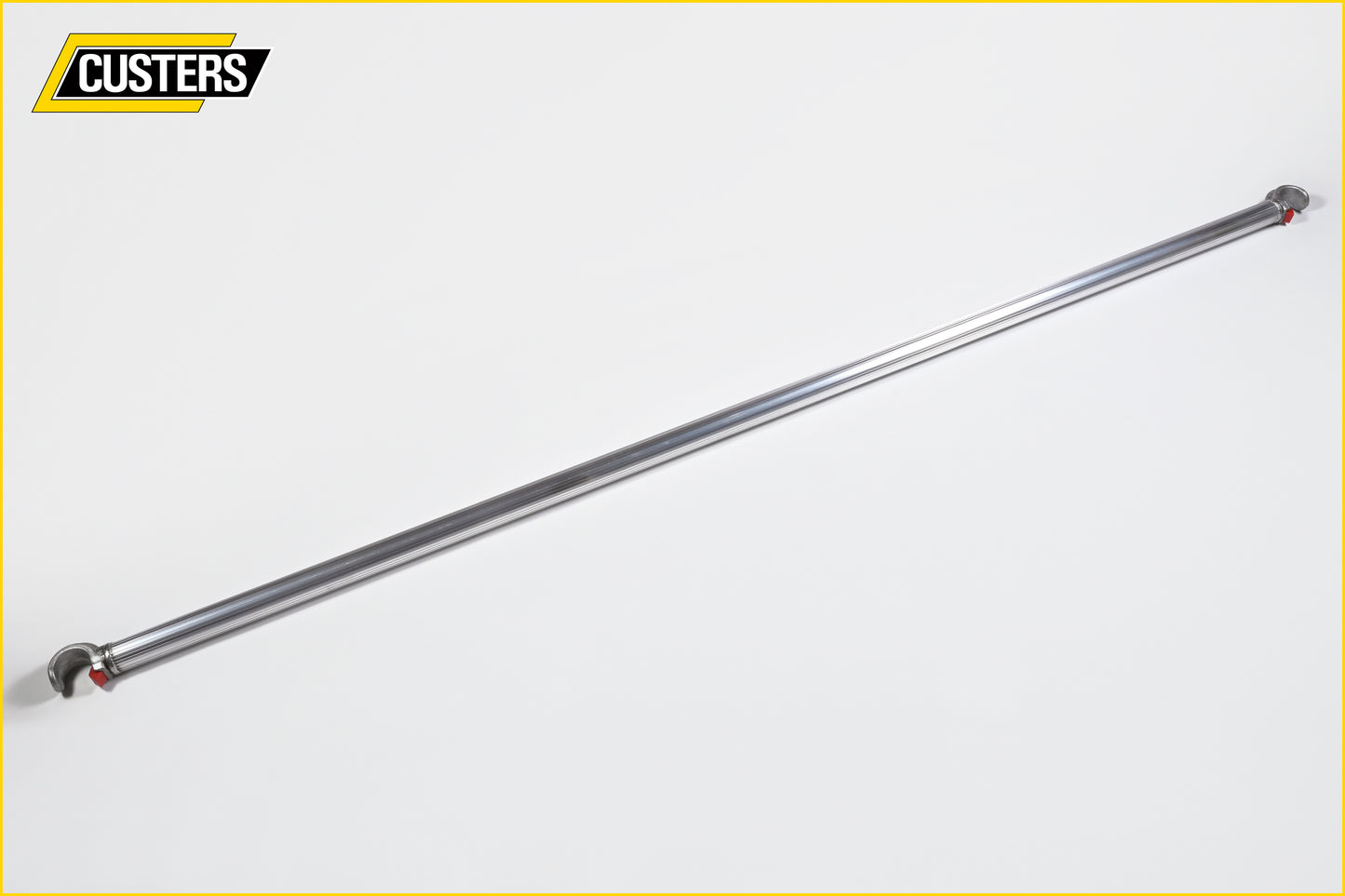

Horizontal Braces = 6

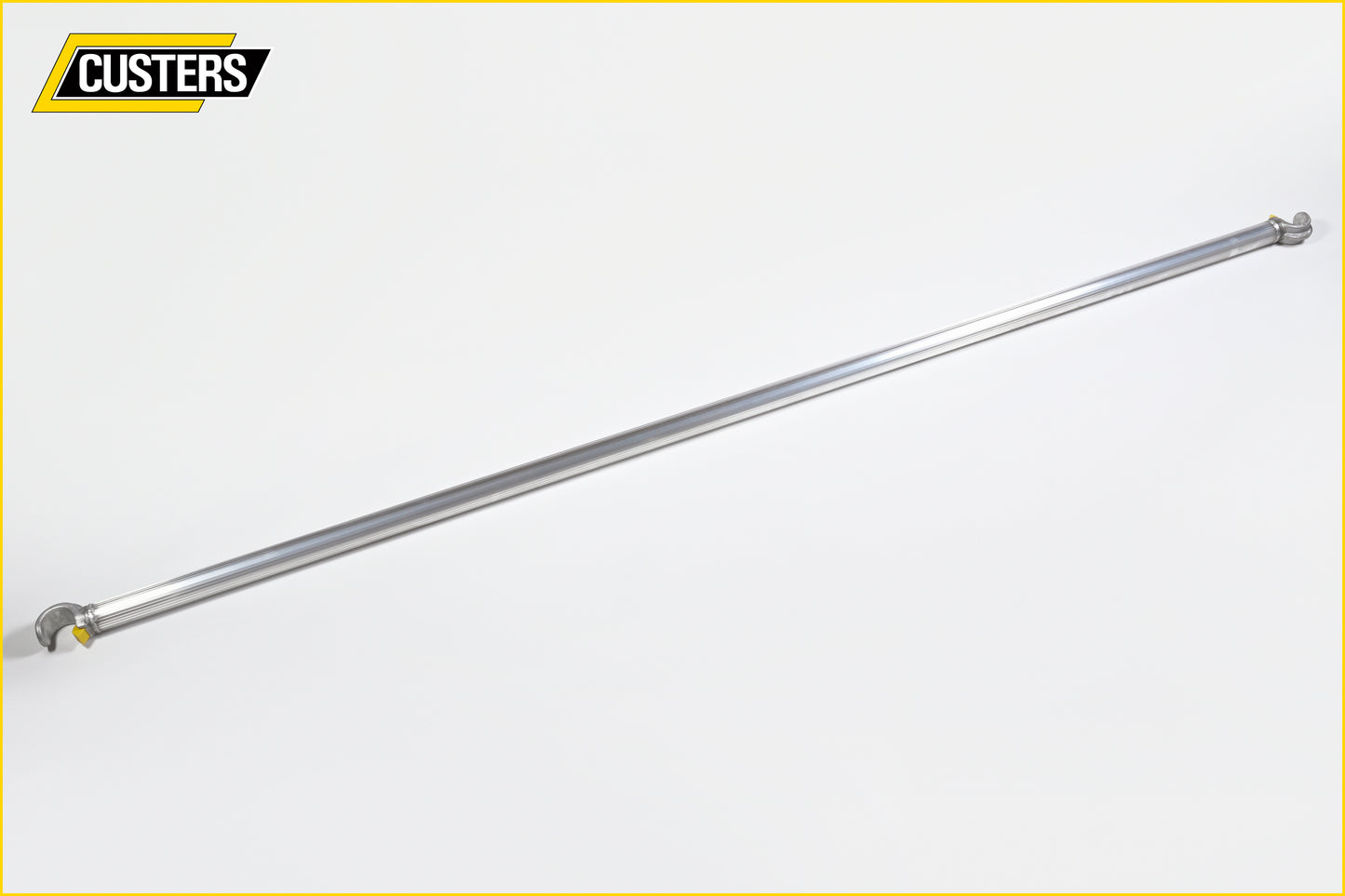

Diagonal Braces = 2

Horizontal-Diagonal Brace = 1

Outriggers = 4

Jack and Base Plates = 4

User Manual = 1
