CUSTERS Aluminum Scaffold Tower 17 ft. x 6 ft. 2.5 ft.

This mobile ground supported or rolling scaffold has been developed for the most demanding industrial applications and the rental industry.

Dimensions

17 ft. (H) x 6 ft.( L) by 2.5 ft. (W)

Platform Height 17 ft.

Working Height 23 ft.

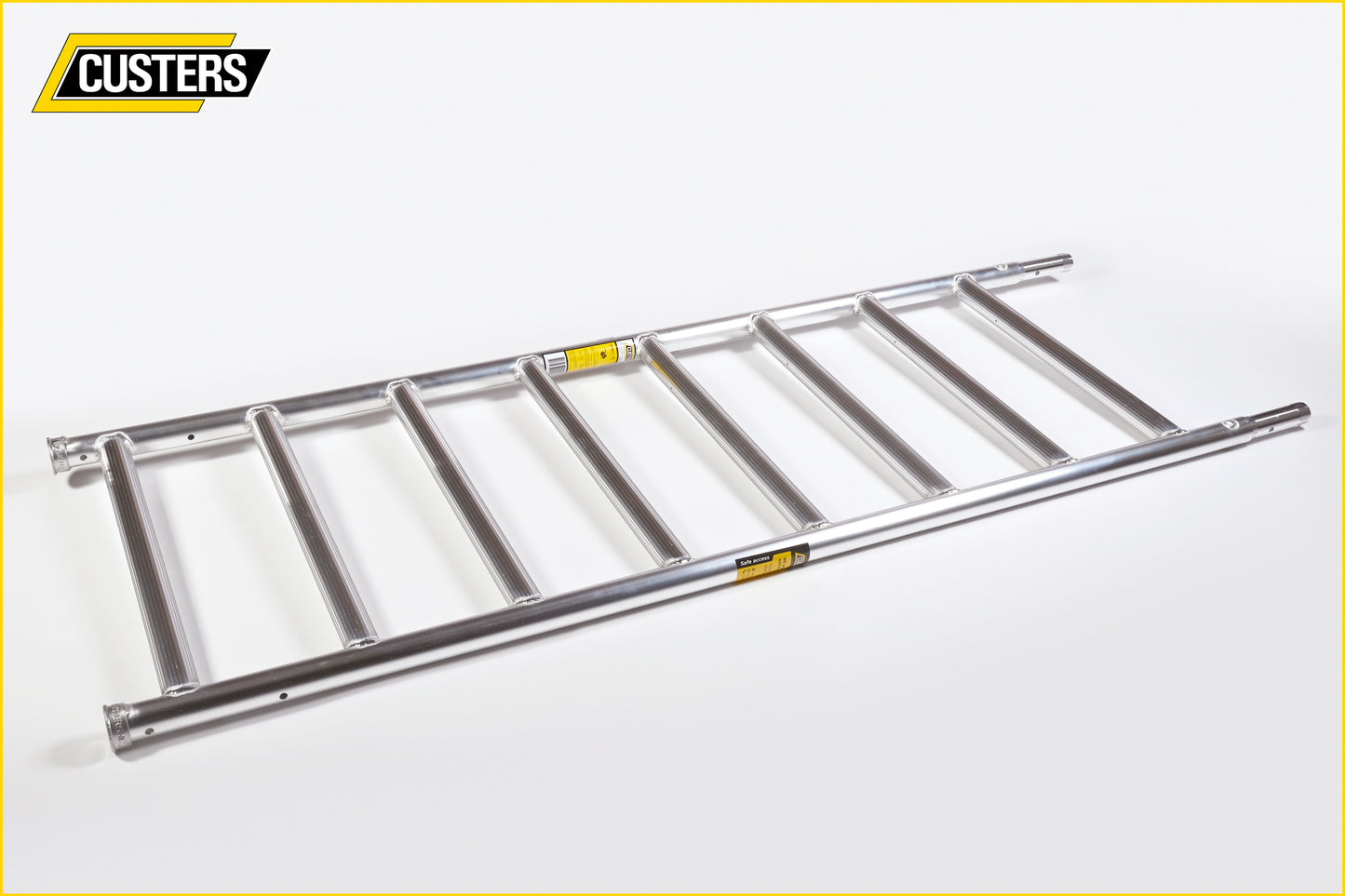

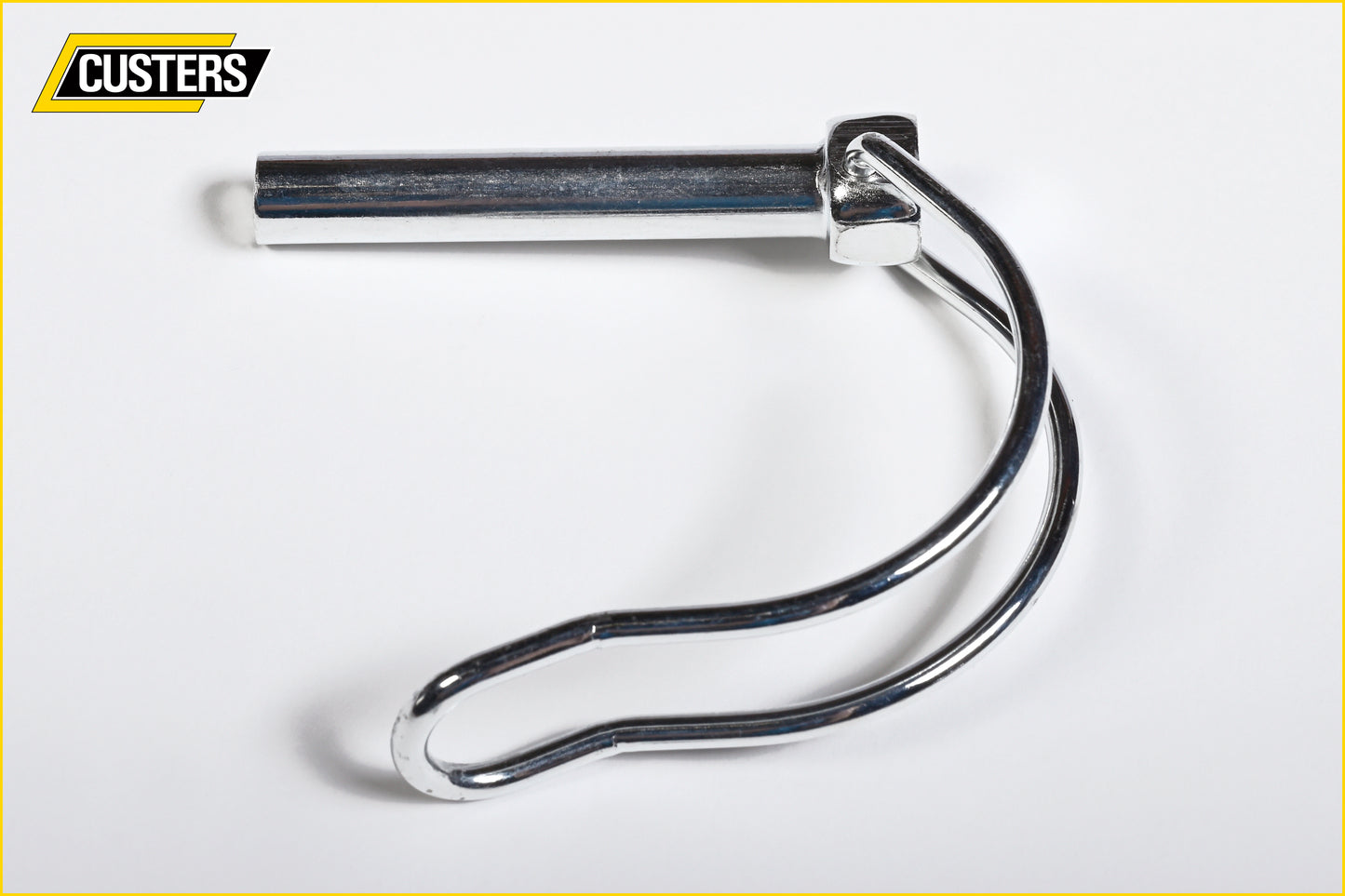

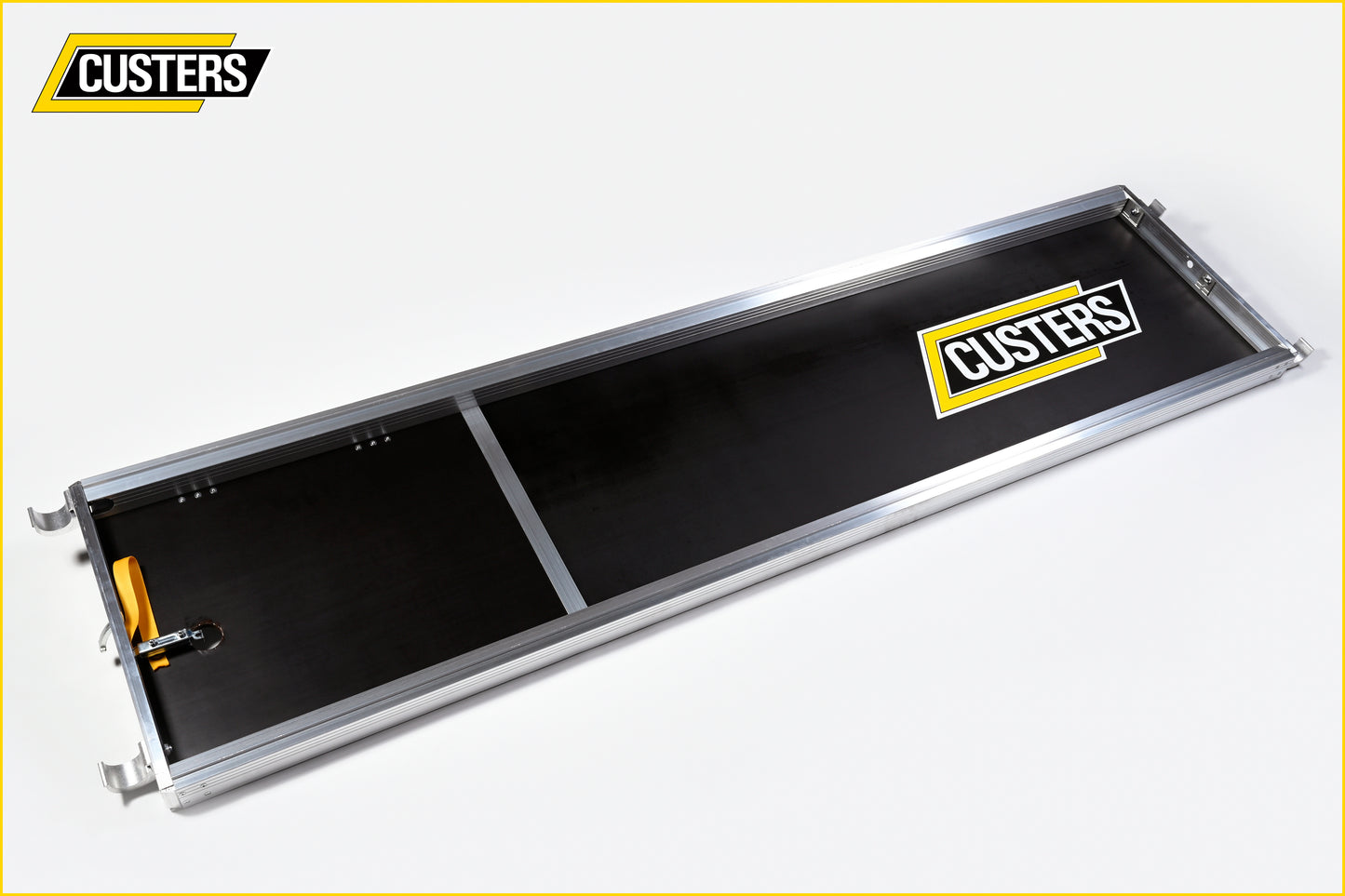

The perfectly stackable Handy platforms with double sided wind securing pins are particularly user-friendly. The rip-grip profile on the all around welded rungs ensure an optimal grip for safe climbing and handling during erection.

The solid end rings protect the frames against deformation. Besides this the caster wheels and jack plates with spindle have clever locking systems that makes assembly and disassembly extremely user-friendly.

Specifications

• EN 1004 TÜV approved
• CSA, ANSI, OSHA compliant
• 1,500 lb. combined worker and material load capacity.
• Expandable  up to 45 ft. working height with a platform height at approx. 39.4 ft.
• Tube wall thickness: 2.3mm (frame vertical) and 2.15mm (rungs + braces)

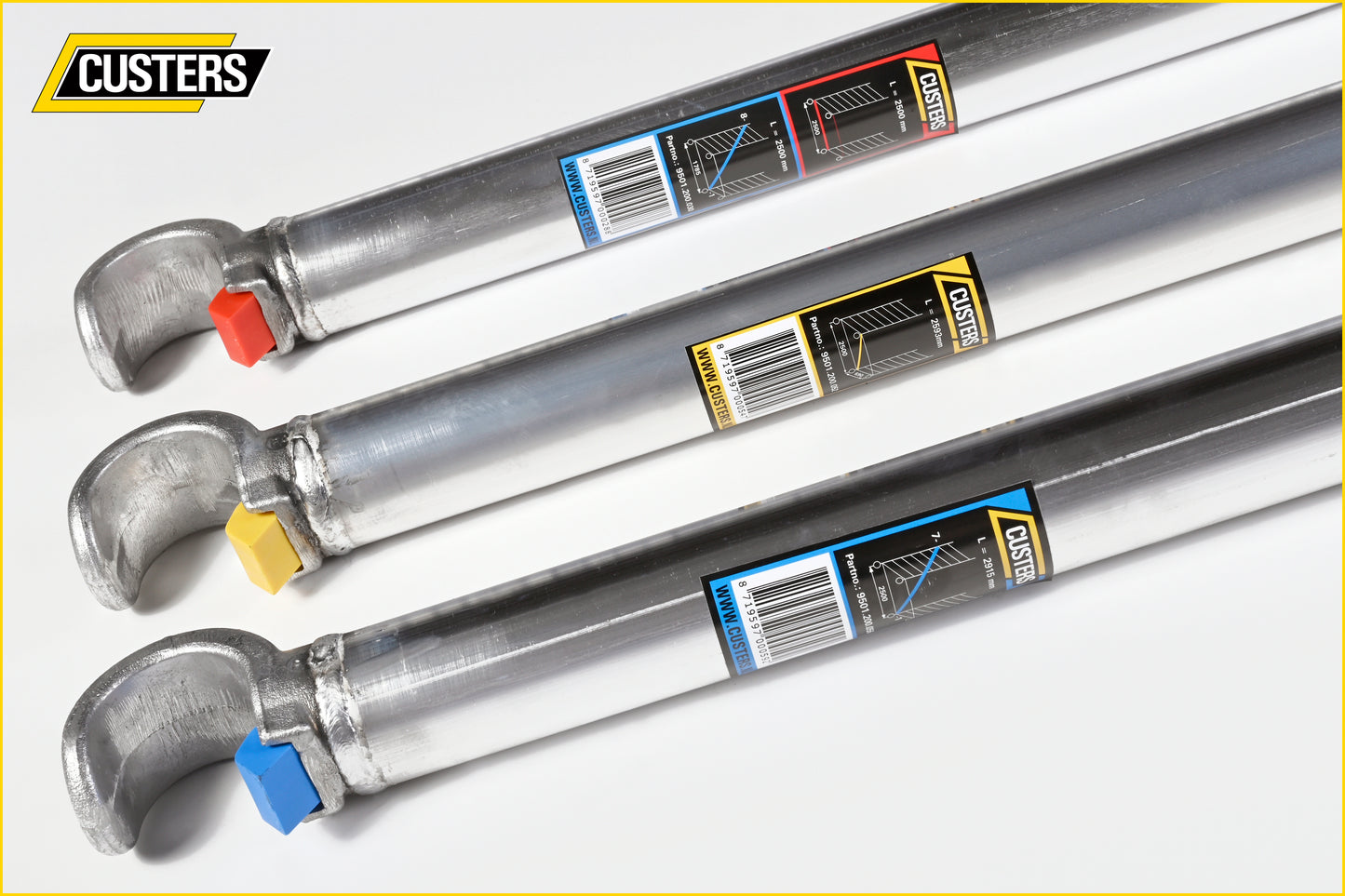

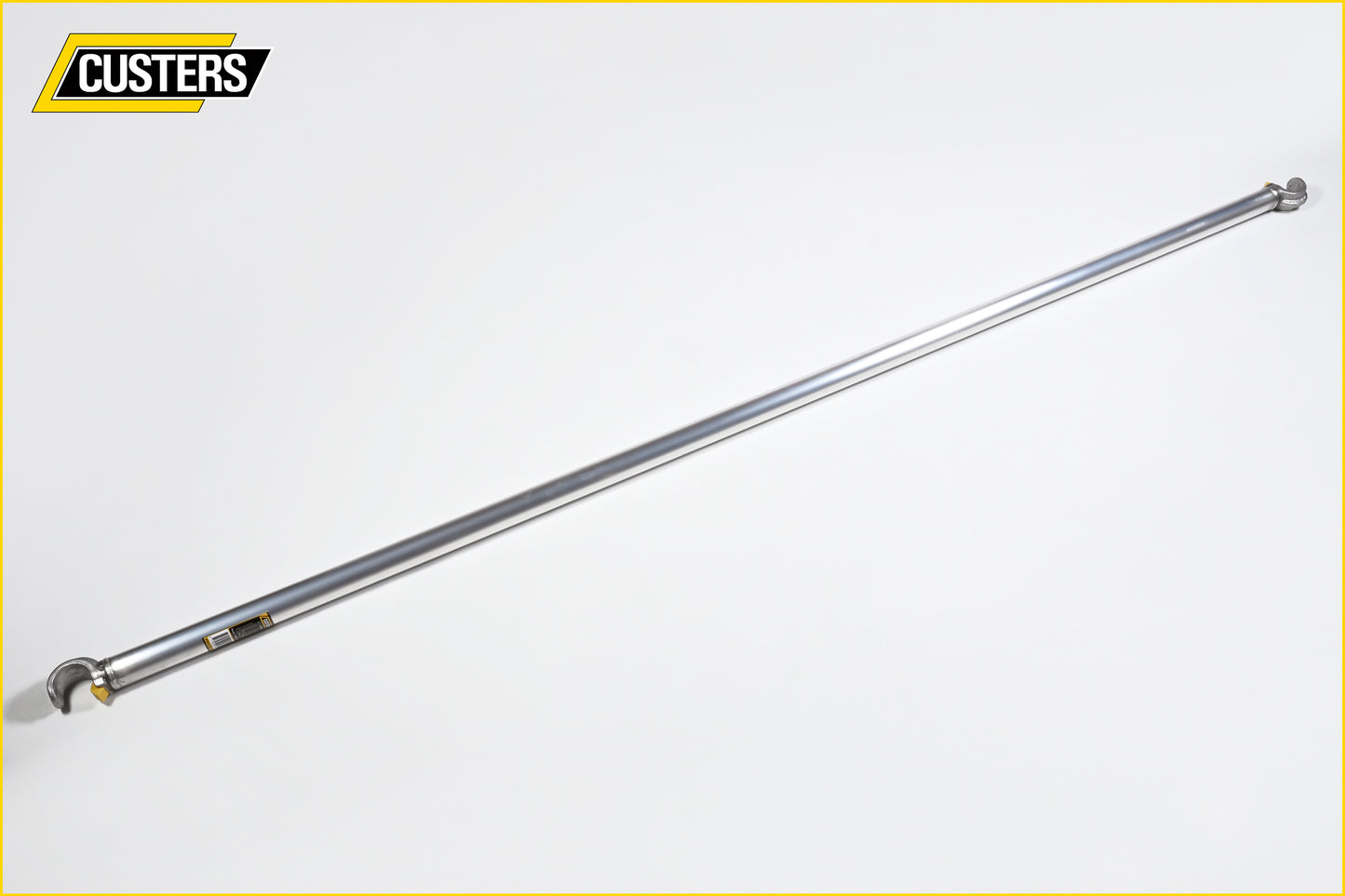

• Colour coding on all braces
• Made in The Netherlands
