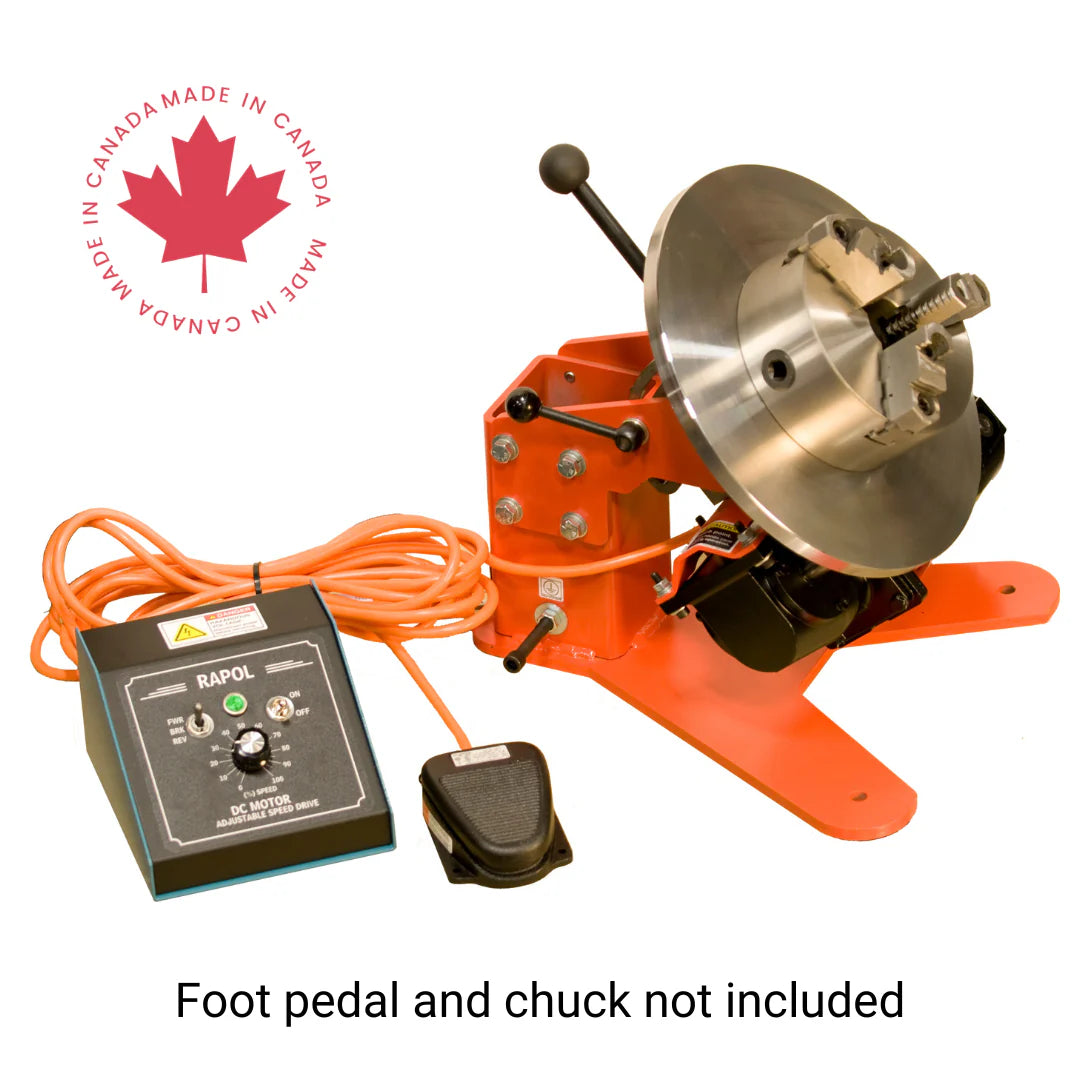

Rapol 150 lb Bench Top Welding Positioner (BP-150)

The BP-150 is designed for rotation of lighter work pieces, it offers a robust solution for consistent holding and rotating of parts in your welding workstation. The BP-150 positioner offers manual tilt adjustment, high frequency protection, and a heavy-duty foot control switch  The capacity is 200lbs in the horizontal position and 150lbs in the vertical position.

Made in Canada

• Chuck not included (check out the Welding Positioner Chuck)

Features

• Control The solid state (SCR) DC control with dynamic braking – variable speed table rotation motor system will always provide proper weld speed settings and steady rotation rates. Rotation speeds are electronically controlled in both forward and reverse direction.
• Drive Heavy-duty self-locking worm gear reducer on rotation drive positively prevents the load from moving unless the worm gear is revolving.
• Electrical System The electrical control components are housed in an easy access cabinet in the front of the machine. Components and wiring are neatly laid out and labeled for easy troubleshooting.
• Control Panel User friendly and positioned on the back of the machine.

Specifications:
Rotation motor:  1/8 HP
Tilt range:           0-90 Deg
Weight:              95 lbs
Voltage:             115V 60Hz
