Universal Tool UT8701 - Versatile Pneumatic Belt Sander

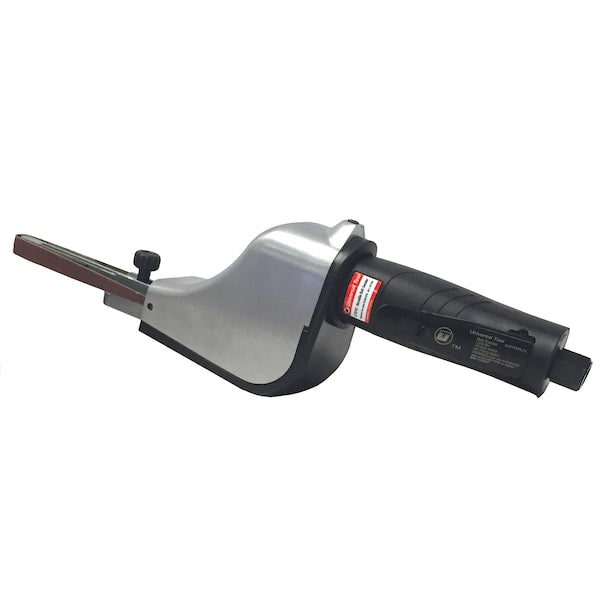

Universal Tool UT8701 — Versatile Offset Pneumatic Belt Sander

Professional air-powered offset belt sander for narrow-access sanding, blending, deburring and surface preparation. This is the actual UT8701 unit photographed by Arclight Tool + Supply Co. Universal Tool is a division of Florida Pneumatic Manufacturing Corporation.

Technical specifications

• Motor: 0.50 HP (0.37 kW)
• Free speed: 20,000 RPM
• Compatible abrasive belt sizes: 1/4-inch or 1/2-inch width × 24-inch length (approximately 6–13 × 610 mm), subject to installed contact arm
• Weight: 3.1 lb (1.4 kg)
• Overall length: 15.75 inches (400 mm)
• Height: 4.6 inches
• Exhaust: through handle
• Air inlet: 1/4-inch NPT; recommended air hose: 3/8-inch internal diameter
• Manufacturer air consumption: 20 CFM; average 5.0 CFM
• Recommended operating pressure: 90 PSI (6.2 bar)

When to select the UT8701

Choose this offset belt sander when conventional disc sanders or grinders cannot comfortably reach narrow edges, channels, corners and confined areas. Suitable for continuous metal surface preparation, weld blending, deburring, rust removal and finishing, using abrasives and techniques appropriate to the material. The offset configuration and built-in regulator allow controlled work in restricted locations. For broad flat surfaces or final cosmetic finishing, a compatible orbital finishing sander may be a better selection.

Tool features

• Adjustable belt tracking and replaceable/interchangeable contact arms
• Lightweight belt guard to facilitate belt changes
• Ergonomic composite grip, safety lock-off throttle and built-in air regulator

Abrasives and accessories

Ask Arclight for compatible 1/4-inch or 1/2-inch × 24-inch abrasive belts, replacement contact arms and other wear parts. We can source industrial abrasive and finishing options through Platinum North America, Bosch Professional and other suppliers where the exact belt size, backing and speed ratings are compatible; ordinary Bosch sanding discs are not substitutes for this machine's sanding belts. Select abrasive grit and material for the substrate and finishing task. Follow manufacturer lubrication instructions and appropriate dust-control and PPE requirements.

Actual inventory and clearance

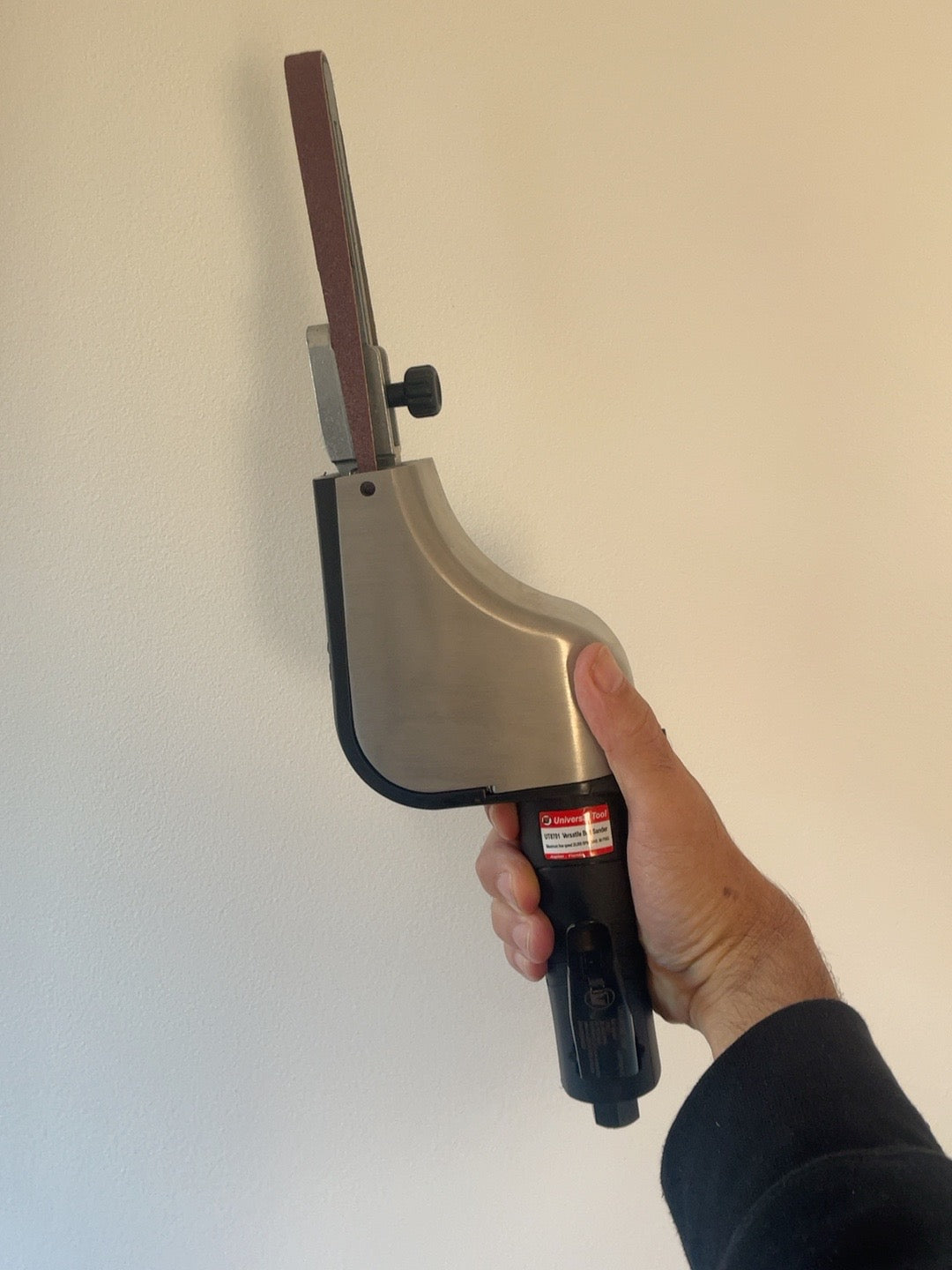

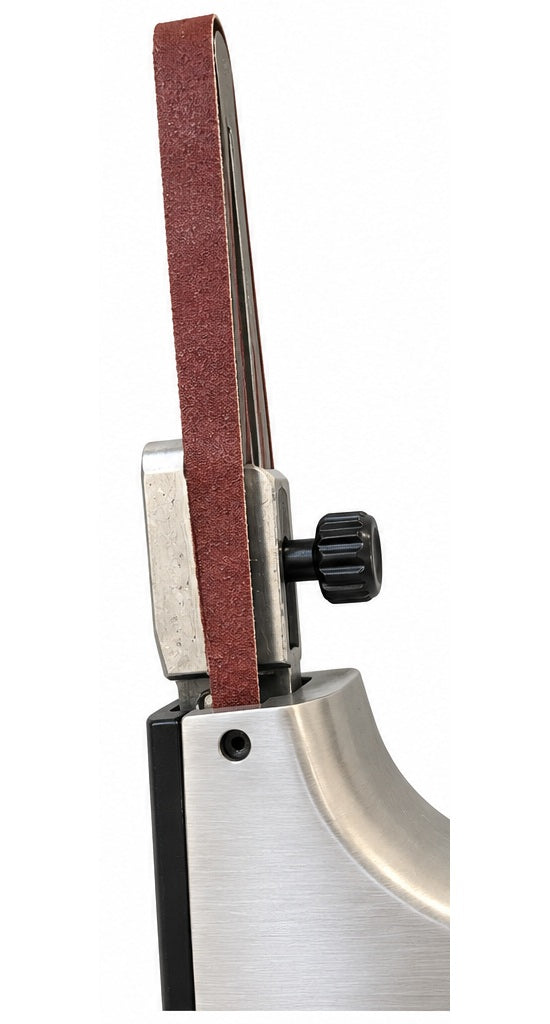

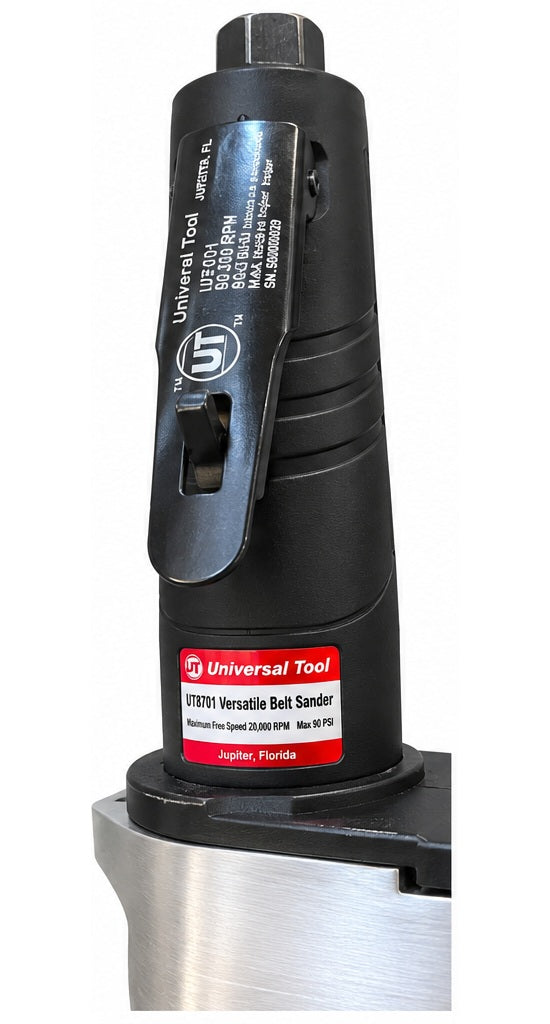

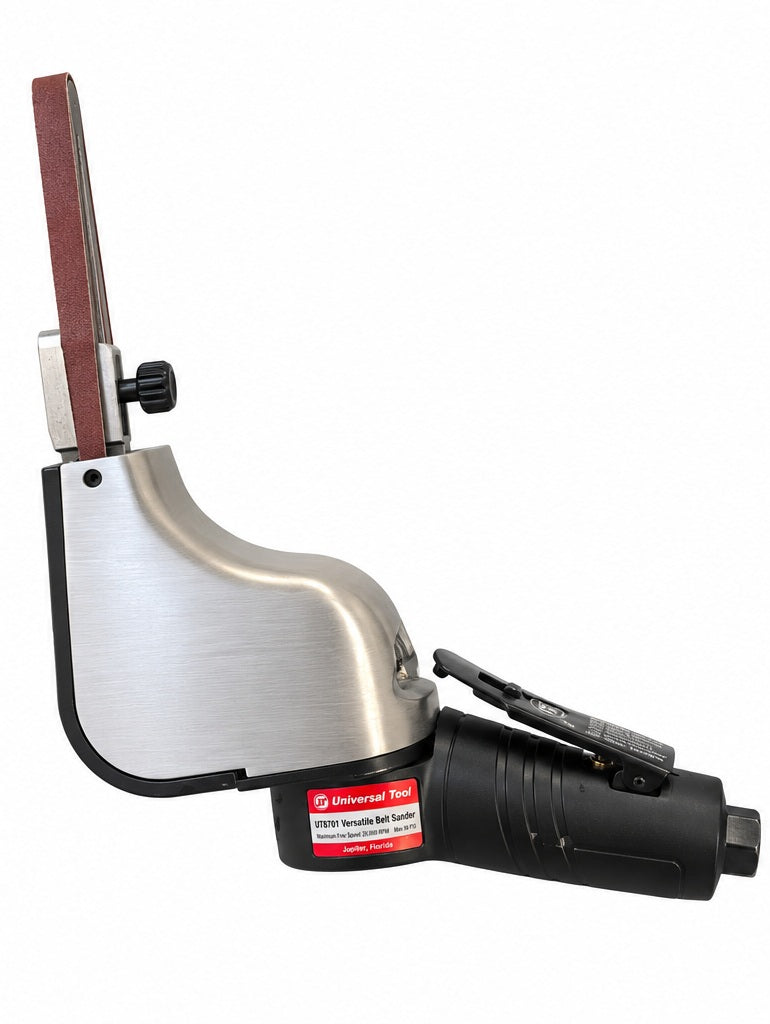

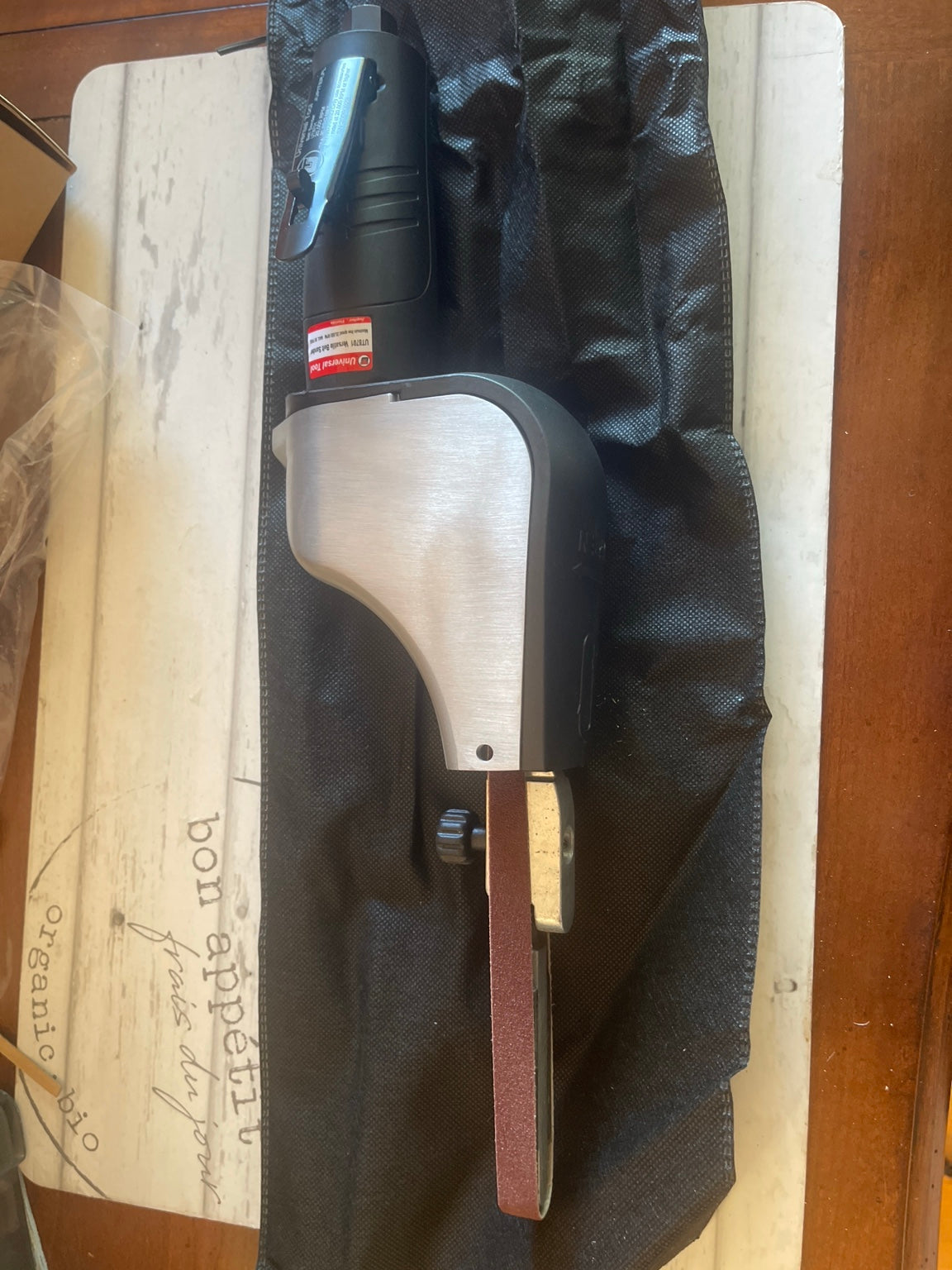

Product photos show the actual item, its installed belt, belt-adjustment hardware and markings. The box identifies model UT8701 and Taiwan origin. Only the pictured configuration is implied; any additional arms or belts must be confirmed as included. Limited Ontario warehouse clearance inventory; availability and fulfillment arrangements to be confirmed before publication.

Additional tools, accessories and pricing available upon request.
